Infineon's USB 20 Gbps Reference Design, Decoded: 5 m Passive Cable, 36 W per Port, and What Machine Vision Still Needs

1. Read the three numbers first: 20 Gbps, 5 metres, 36 W

Infineon's press release of 30 September is short, but almost everything in it hangs on three figures: USB 20 Gbps, five metres of passive cable, and 36 W per port. Take them one at a time.

USB 20 Gbps is not a new physical connector. Its specification name is USB 3.2 Gen 2x2 — two 10 Gbps lanes bonded inside a single Type-C cable, doubling the bandwidth to 20 Gbps. It sits between USB 10 Gbps and USB4 at 40 Gbps, and it carries none of USB4's PCIe or DisplayPort tunnelling machinery. It is raw data bandwidth, which is exactly what industrial cameras want: machine-vision protocols such as USB3 Vision were built on plain bandwidth in the first place and have no use for tunnels.

Five metres of passive cable is the real hurdle in this announcement. "Passive" means no repeater chip and no auxiliary power in the cable — just copper. At 20 Gbps the signal's fundamental frequency is already in the 10 GHz region, and insertion loss, crosstalk and return loss eat the margin metre by metre, which is why most passive USB 20 Gbps cables on the market are rated for one to two metres and anything longer means active optical cable or an inline redriver. Getting stable transmission over five metres of passive copper means the host transmitter's pre-emphasis and equalisation, connector impedance continuity and the cable process have to be designed and validated as one system — and that is precisely the engineering this reference design delivers.

36 W is the power envelope per USB-C port, with two fixed profiles named in the release: 5 V/3 A and 12 V/3 A. Do not under-rate it. A conventional industrial camera draws 5 to 10 W, but an AI camera with edge inference — heatsink, NPU and all — typically sits between 20 and 30 W. Until now such cameras usually needed a separate power run or an external adapter on the floor; every extra conductor in a cable carrier is another wear point and another failure point. At 36 W, data and power collapse into the same USB-C cable.

The positioning is obvious at a glance: 20 Gbps plus 5 m plus 36 W fills the gap between the bandwidth GigE cannot reach and the price CoaXPress cannot reach.

2. Why machine vision is the beachhead

Anyone who has commissioned a production line knows where cameras end up: above a gantry, inside a machine enclosure, beside an end-effector. Camera-to-IPC distances of three to six metres are the most common case by far, and until now that distance offered only three compromises — active optical cable (expensive, bend-sensitive, shortened life in a cable carrier), an inline repeater (another power point, another failure point), or simply dropping to 5 Gbps or gigabit Ethernet (sacrificing frame rate and resolution).

AI cameras added a second contradiction: edge inference needs power, and 20-30 W made the "one cable" dream harder, not easier. This card solves both at once. It plugs into the host; the bracket carries two USB-C ports; one cable runs data and power five metres out to the camera, cutting conductor count and connector count in every carrier and fixed run.

The launch venue says who it is for. VISION Stuttgart is one of the world's largest machine-vision trade shows, and the audience there is camera makers, industrial-PC vendors and system integrators. The release's phrase "ready-to-use platform, accelerates time-to-market" translates plainly as: spare these three groups the months they would otherwise spend characterising signal integrity themselves.

One objective caveat belongs here: "five metres" is Infineon's validated result for this reference design with its specified cabling. In real projects, a different cable brand or batch, or too tight a bend radius, will eat margin. Our standing practice is to write cable length and acceptance criteria — 72 hours of continuous full-load traffic with zero errors — straight into the purchase specification. That discipline applies to any high-speed interface, not to any one vendor's product.

3. What is on the card: two chips, two jobs

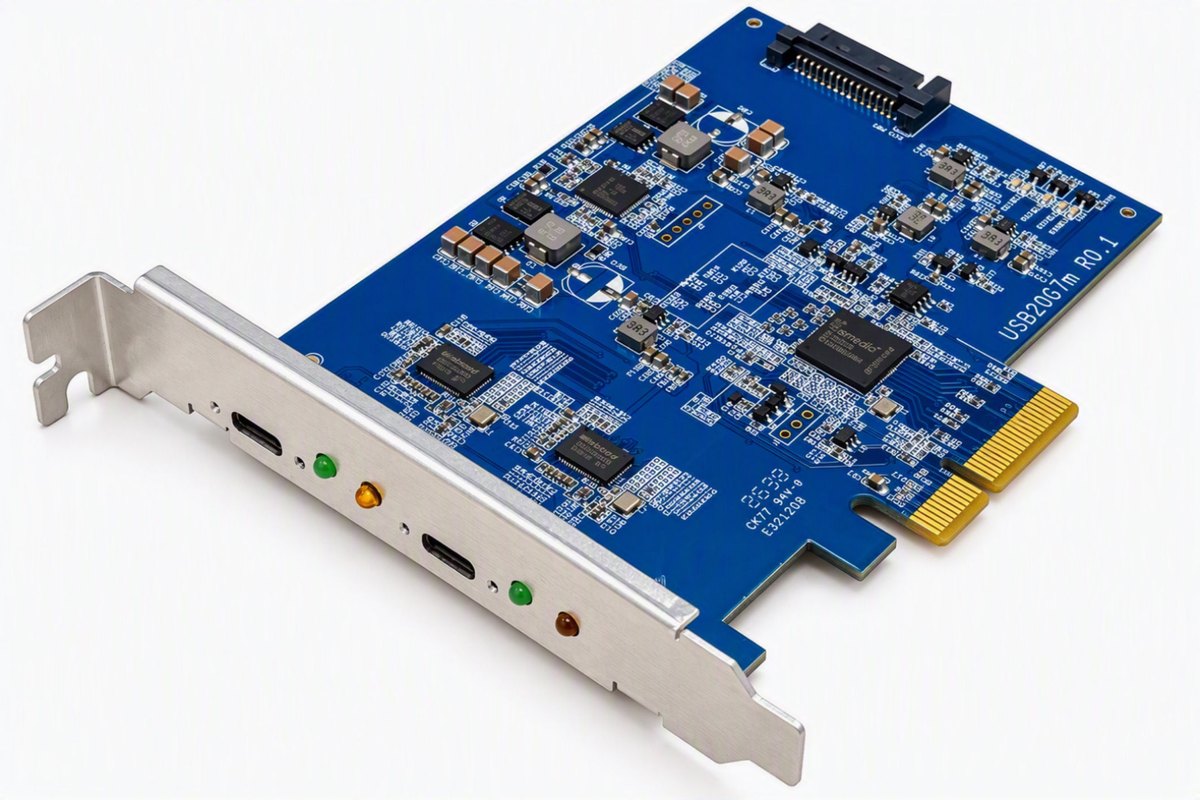

The reference design is a PCI Express Gen4 x4 add-on card with two USB-C ports on the bracket, each with its own status LED, and power and signal chains laid out for industrial temperature ranges. Two chips do the work:

• ASMedia ASM4242 — a USB4 host controller. Upstream it takes PCIe Gen4 x4 to the CPU; downstream it drives the two USB-C ports. Why Gen4 x4 specifically? Do the arithmetic: two ports at a full 20 Gbps each is 40 Gbps, about 5 GB/s. PCIe 3.0 x4 delivers roughly 3.9 GB/s of usable bandwidth — not enough. Gen4 x4 gives about 7.9 GB/s, which leaves headroom. The press release does not spell this out; the figure is our calculation from the specifications, and the silicon choice is consistent with it.
• Infineon EZ-PD CCG7 — the USB PD controller. It owns CC-pin negotiation, PDO selection and the power path; the 36 W story is its job. The CCG family ships in the hundreds of millions in consumer chargers, so porting that PD logic to an industrial port is a maturity transfer, not a gamble.

In one line: the ASM4242 moves data, the CCG7 negotiates power, and only together do they make a complete USB-C host port. Note also what "reference design" means here — this is not a retail card. It is a full package of schematic, PCB and firmware that Infineon hands to industrial-PC and add-on-card manufacturers; end users will meet it as an option inside the machines and cards they buy.

4. What it means for plant IT and integrators: a working checklist

The press release is written from the vendor's chair. From the buyer's and integrator's chair, it condenses into four actions you can execute directly:

1. Add one line to your RFQ. From Q4 2026, when sourcing industrial PCs, ask: "Is a USB 20 Gbps host card available (PCIe Gen4 x4, dual port, PD at least 36 W)?" If yes, request the validation report for that port at your target cable length.
2. Check the camera side. When selecting an AI camera, verify two things: that its interface is USB 20 Gbps (USB3 Vision over Type-C), and that its power draw falls inside the 5 V/3 A or 12 V/3 A profile. Inside the profile you get the single-cable benefit; outside it, keep the separate power design.
3. Put the cable in the technical agreement. Where "5 m passive" is specified, require insertion-loss and return-loss curves at that length from the supplier, sample-test on delivery, and run a 72-hour full-load error-count acceptance. Consumer-grade short cables are not substitutes.
4. Tier your distances; do not marry one interface. Within 5 m with high bandwidth plus power: USB 20 Gbps. From 5 to 100 m at modest bandwidth per camera: GigE. Ultra-high bandwidth at short reach (wafer-level inspection, line-scan AOI): CoaXPress or fibre stays. Interfaces are tools, not loyalties.

A note from the field: on vision retrofits and IPC builds we run for factories here in Guangzhou, "interface type and cable length" now sits on page one of every proposal — one rework (half a day of downtime plus re-cabling) costs far more than the extra hour spent getting this right at selection time. What a reference design like this buys us is one more line on the selection table that has validation data behind it.

5. Who Infineon is: from Siemens' semiconductor division to today

Infineon Technologies AG was spun out of Siemens' semiconductor group in 1999 and listed on the Frankfurt Stock Exchange (ticker IFX) the same year. Its first decade held two painful divestitures: in 2006 the memory (DRAM) business was separated and listed as Qimonda, which went bankrupt in early 2009 in the memory price collapse; in 2010 the wireless solutions business was sold to Intel. Shedding both let Infineon concentrate on power semiconductors, automotive electronics and security chips, and two acquisitions filled the remaining gaps — International Rectifier in 2014 for power devices, and Cypress Semiconductor in 2020 for roughly EUR 9 billion. The protagonists of this article arrive through that second deal: the EZ-USB and EZ-PD product lines came to Infineon with Cypress.

On scale, per the release: about 57,000 employees worldwide at the end of September 2025 and roughly EUR 14.7 billion of revenue in fiscal 2025 (ended 30 September), with long-standing top-two global share in both power semiconductors and automotive semiconductors; the 2023 acquisition of GaN Systems completed its third-generation semiconductor portfolio. Headquarters sit in Neubiberg, north-east of Munich — the campus in the photograph below.

In the USB niche specifically, Infineon's hand is stronger than most people assume. On the device side, EZ-USB FX2/FX3 have been a default USB interface choice in industrial cameras, instruments and medical devices for two decades. On the power side, the EZ-PD CCG family was among the earliest USB PD controller lines and ships in the hundreds of millions in chargers and laptops. The host side was the missing piece — until the EZ-USB FX20, a USB 20 Gbps peripheral controller, lifted the device-side bandwidth to 20 Gbps. This PCIe reference design now closes the host side: FX20 at the camera, ASM4242 plus CCG7 at the industrial PC, and both ends of a USB 20 Gbps link have an answer.

To be fair about the field: Infineon is not alone in it. Texas Instruments holds a full USB PD controller portfolio; ASMedia and Parade have long occupied the host-bridge seat; cable and connector makers each hold a slice of the ecosystem. The real significance of a reference design is turning "20 Gbps over five metres" from a lab figure into a reproducible engineering package, lowering the adoption threshold for the whole chain. Whether USB 20 Gbps becomes one of the mainstream industrial-vision interfaces depends on camera-side follow-through and cable-ecosystem maturity — a question the next one to two years will answer.

6. Sources and notes

Technical facts in this article are a secondary elaboration of Infineon's official press release of 30 September 2026 (information number inftn202609-148) and its public product pages; the company history is compiled from Infineon annual reports and public reporting; the cable-acceptance practice, camera power ranges and PCIe bandwidth arithmetic are the ACCPC engineering team's field judgement, offered for peer reference. Factories in the Guangzhou area planning a vision upgrade — where interface selection and cabling must be decided together — can reach us on +86 20-3902-9800 or +86 188-2512-6836; site surveys are free within Panyu and Nansha.
